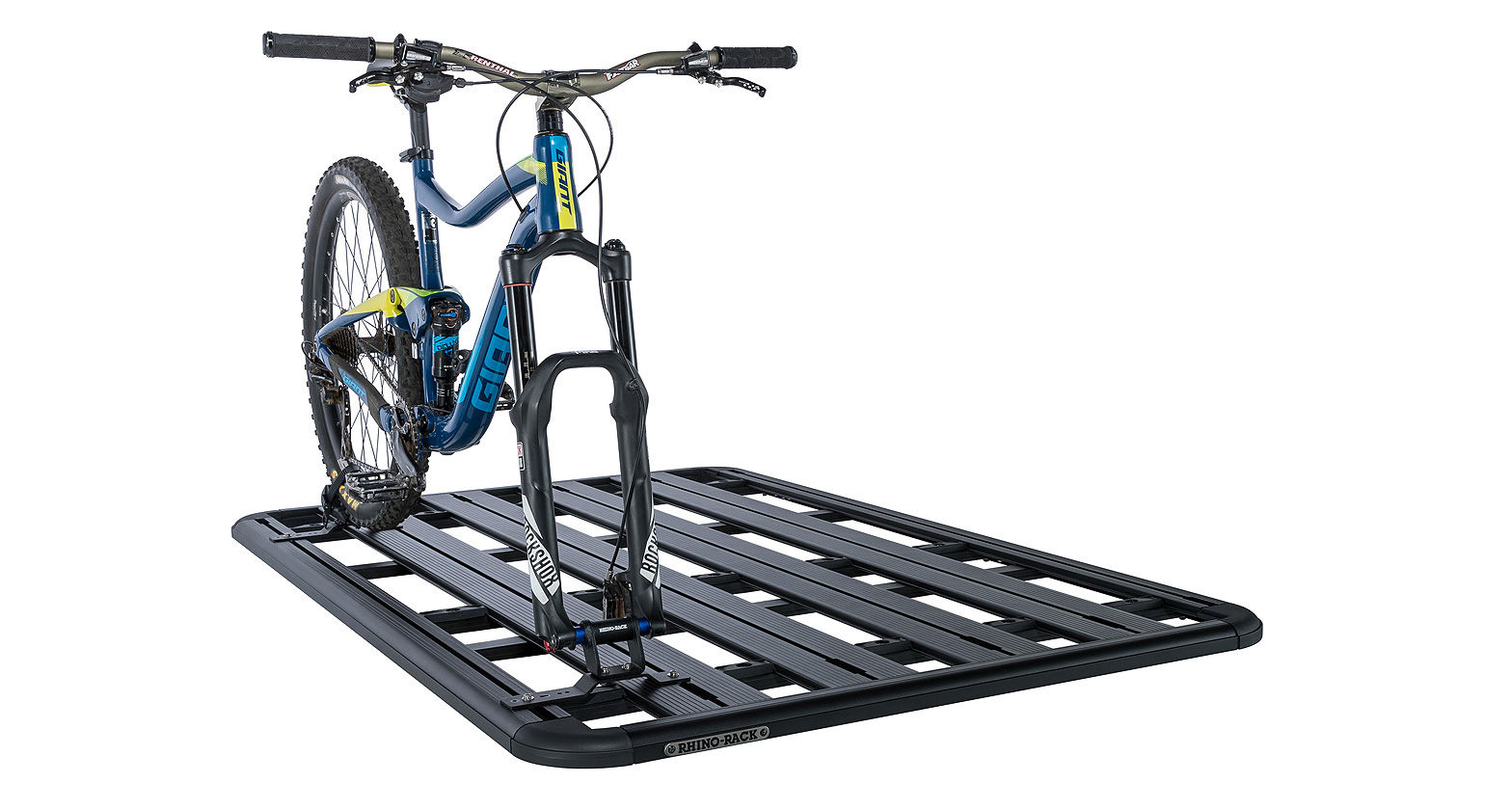

The Pioneer Thru Axle Bike Carrier allows you to attach a thru axle bike directly to a Pioneer system. Designed for strength and durability, it firmly secures your bike whilst reducing any sway and rocking created when driving. The bike mount comes with 15mm x 100mm thru axle insert, with additional sizes available for purchase.
(All prices are listed in AUD & exclude freight & fitting charges.)
Product Details
FEATURES SPECIFICATIONS INSTRUCTIONS ROOF RACK COMPATIBILITY
Overview

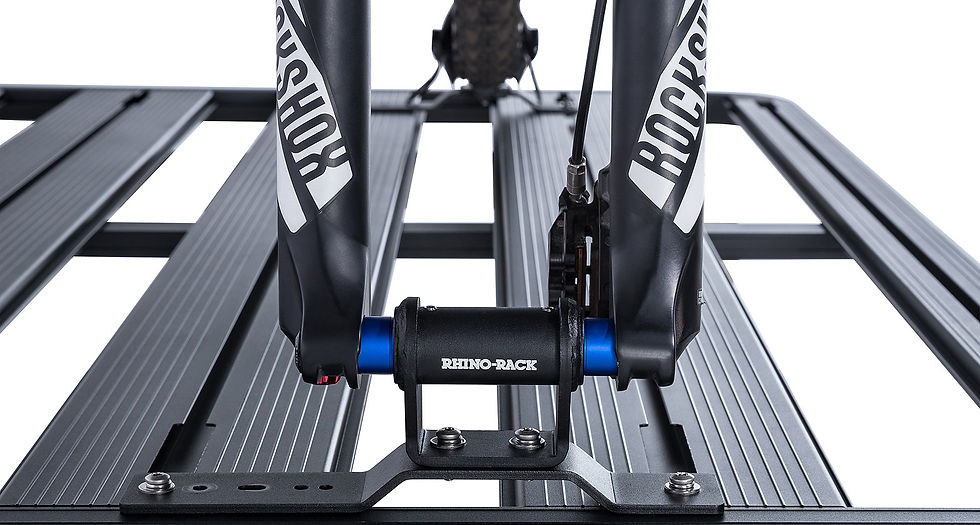

Featuring easy and quick installation, using your existing bike skewer and a quick release strap to safely secure the rear tyre. The Pioneer Thru Axle Bike carrier mounts the front mount and rear tyre through to the Pioneer channels allowing full placement flexibility. The front mount can be turned around to offset handlebars when carrying two bikes. If carrying three or more bikes every second mount can be installed back to front to allow for maximum space.
Features:
Compatible with all Rhino-Rack Pioneer systems.
The housing is constructed using a satin black powder coated steel
The inserts are blue anodised aluminium to prevent rusting
Pre-assembled
15mm x 100mm Multi-Axle Adaptor included
Compatible with all other Rhino-Rack Thru Axle inserts (view product compatibility for insert sizes)
All fixings and tools included
Quick and easy installation/removal
The fork carrier can be rotated to prevent handlebars clashing
Rear wheel carrier can be flipped to fit on smaller trays

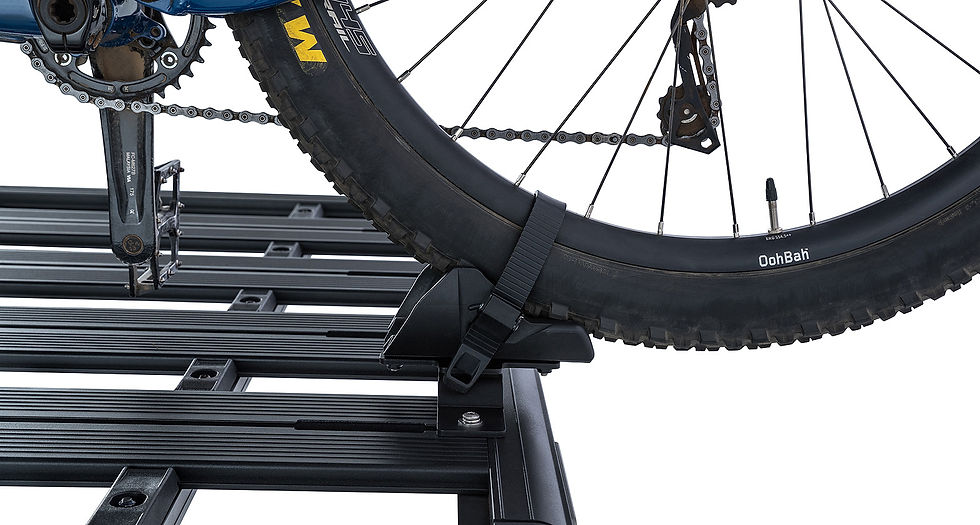

Rear wheel strap fits all wheel dimensions
Front mount height: 95mm
Rear mount height (without strap): 98mm
Maximum on-road weight allowance: 17kg/37lbs
Maximum off-road weight allowance: 11kg/24lbs
Not suitable for electric bikes (e-bikes)
